The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable for spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms, LCN's peel-n-stick installation templates, a convenient spring adjust pointer, and an option Quick Fix bracket kit.
Standard 1260 Series closer shipped with regular arm, a shaft cover and self reaming and tapping screws.
Non-sized (1-5) cylinder is adjustable for interior doors to 4'6" and exterior doors to 3'6".

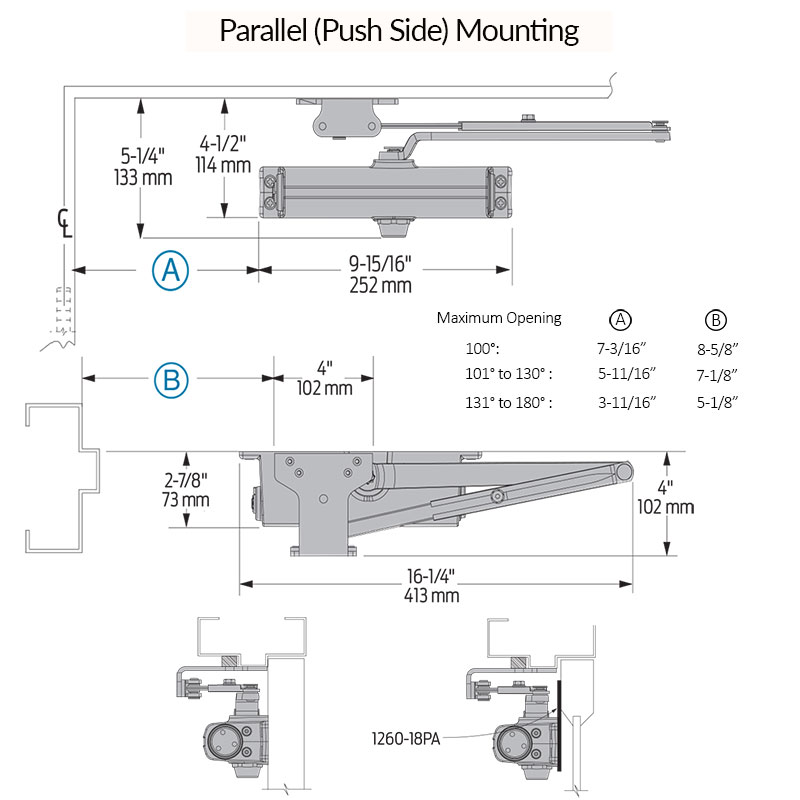

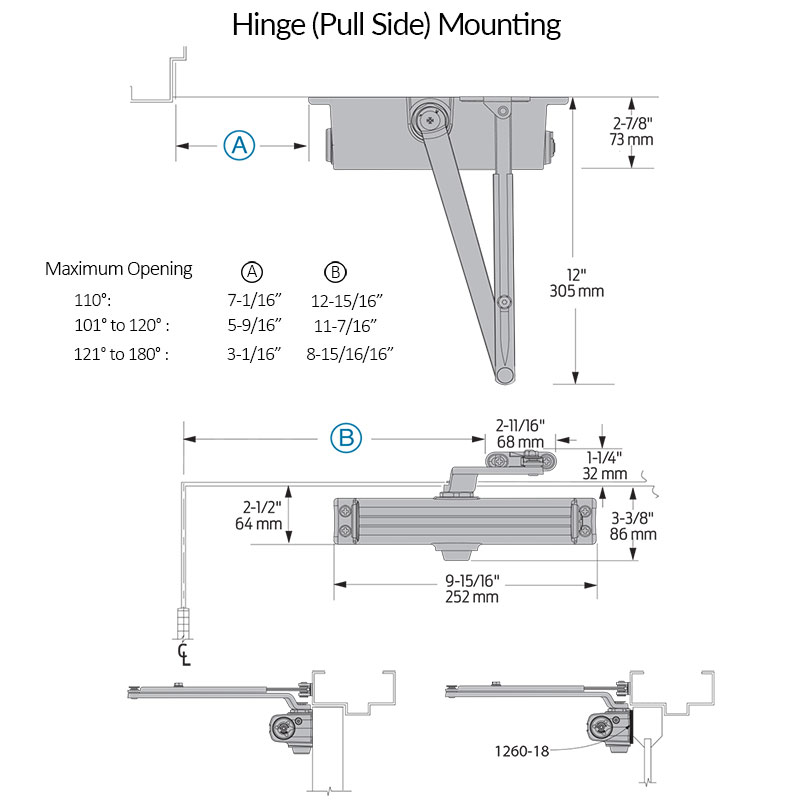

Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors.
Mounts to most common commercial footprint (3/4" x 9 1/16").
Closer meets ADA requirements.
UL and cUL listed for self-closing doors without hold-open.
Tested and certified under ANSI Standard A156.4, grade one.
