Overview

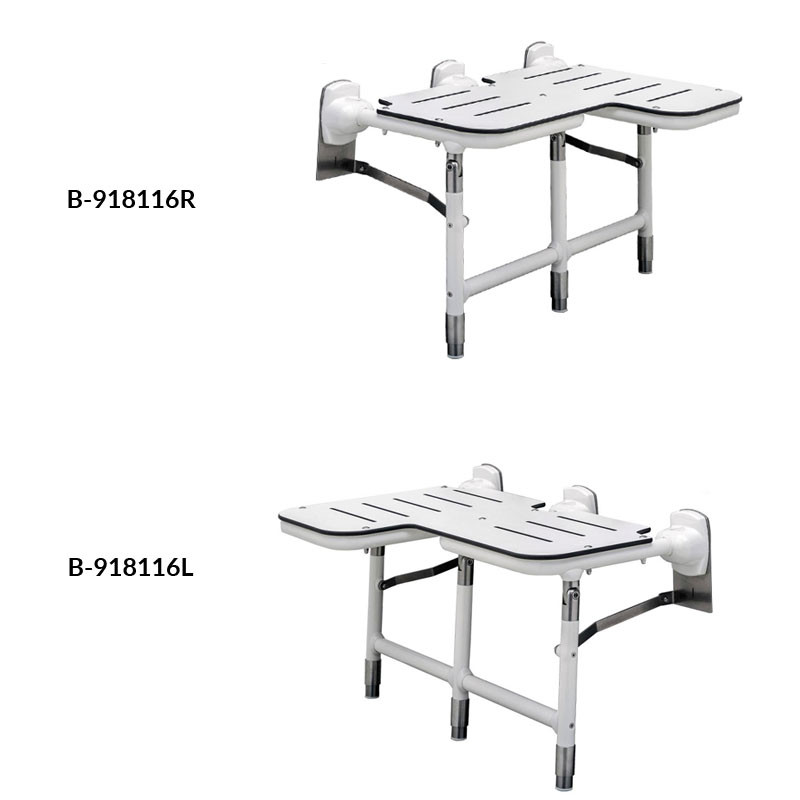

Bobrick Folding L-Shaped Bariatric Shower Seat with Legs offers moisture resistant solid phenolic seat with antibacterial coated vinyl wrapped frame. Install for ADA compliance and improved accessibility.
- Seat: one-piece, ⅜" thick, phenolic-resin core high pressure laminate with matte-finish
- Frame: zinc-plated ¾″ steel tubing with vinyl antibacterial, biocompatible coated thickness<
- Mounting flanges: stainless steel inox AISI 304 ⅛” thick wall plates and polyamide 6 flange cover
- Swing-Down Leg: zinc-plated ¾" steel pipe with white vinyl warm-to-the-touch coating
- Hinge Bracket: 11-ga, Inox AISI 304 stainless steel with satin finish

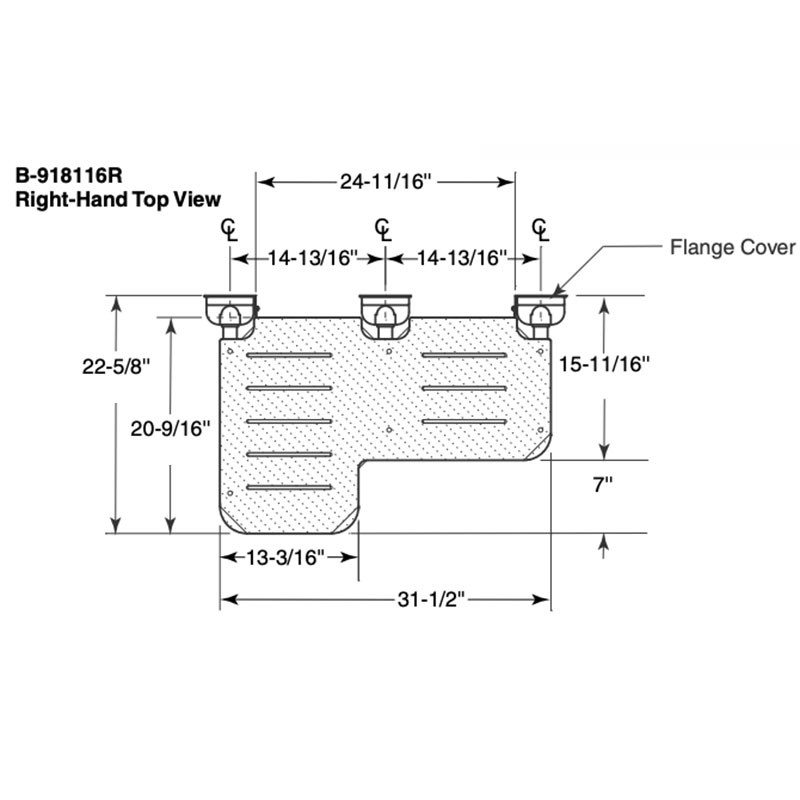

- Overall dimensions: 24-11/16" x 22-⅝”

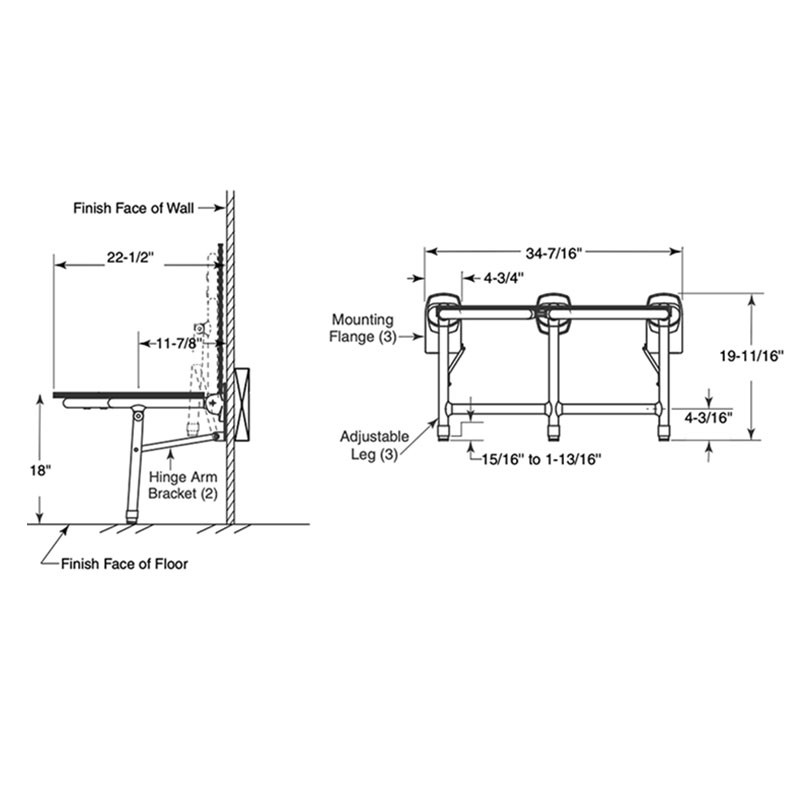

- Projects 22- ⅝″ from wall
- Integral slots for drainage
- Supports up to 1002lbs when properly installed
- ADA compliant
- Mounting screws included, wall anchors NOT included
