Von Duprin 55 Series Wood Door Concealed Vertical Rod Exit Device - Fire Rated

Von Duprin 55 Series Wood Door Concealed Vertical Rod Exit Device - Fire Rated features UL listed hardware for 90 minute protection on fire doors. Add security in schools, stadiums, hospitals, and more.

• UL listed
• ANSI/BHMA A156.3, 2014 Grade 1
• ANSI/UL 10C
• ANSI/UL 305
• CAN/ULC-S104
• CAN/ULC-S132
• 90 minute protection on fire doors
• Projection neutral: 3 ¾"
• Crossbar :36 13/16” at center
• Lock stile case: 7 ¼’" x 2 ¼” x 2 ¼"
• Hinge stile case: 7 ¼’" x 1 3/16” x 2 ¼"
• Latch bolt ⅝"

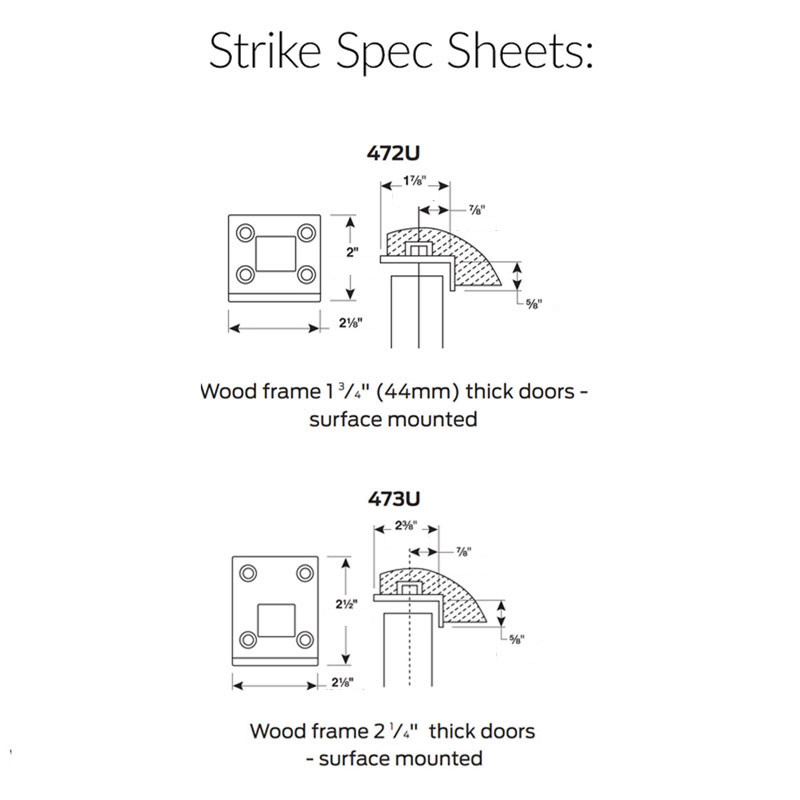

• Wood strikes 472U for 1 ¾”, 473U for 2 ½” door
• Dogging: standard with hex key dogging for temporarily retracting the latch
• CA5547WDC-L with a 38" centerline is available to meet California ADA requirements of 44" lever height
• Includes mounting hardware
